DVM

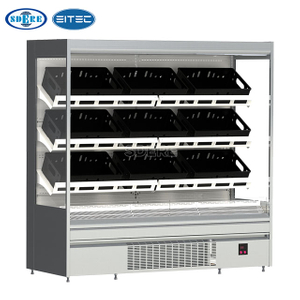

REMOTE OPEN CHILLER-DVM

3H1(+1~+10 ℃)

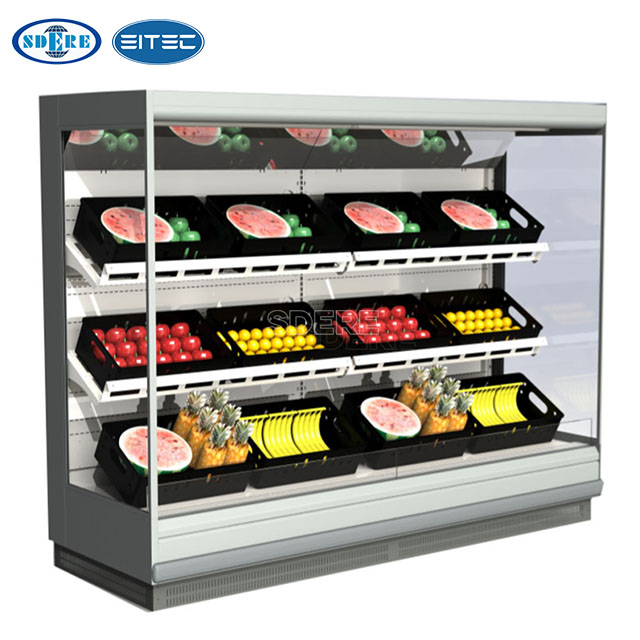

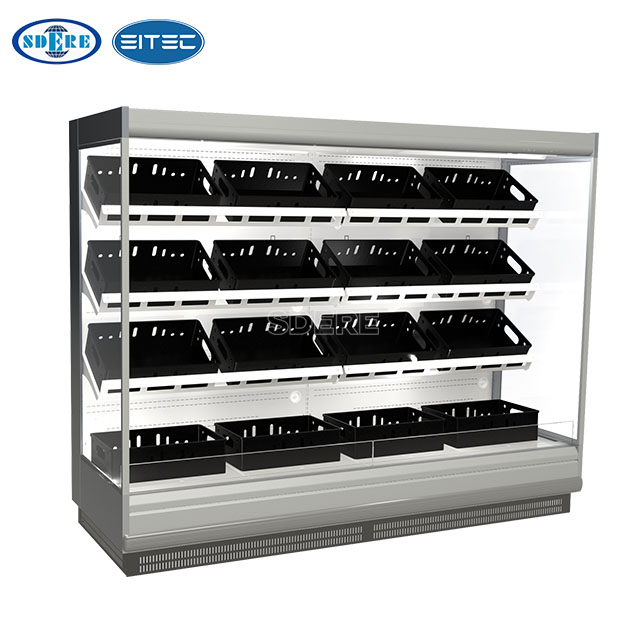

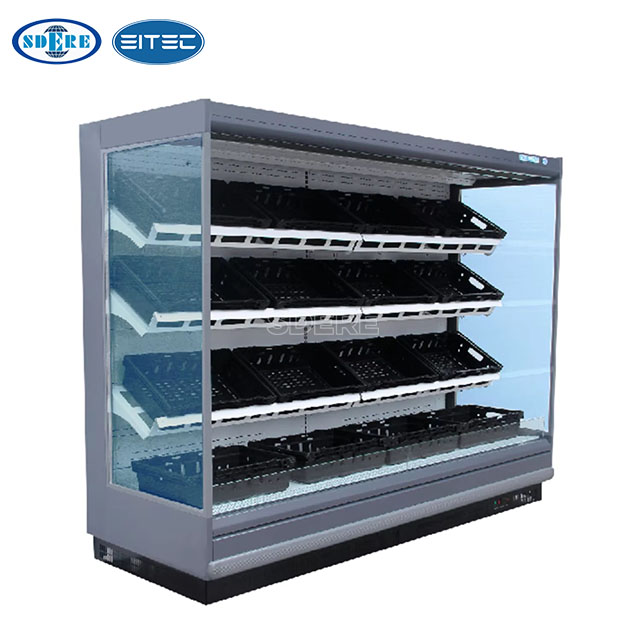

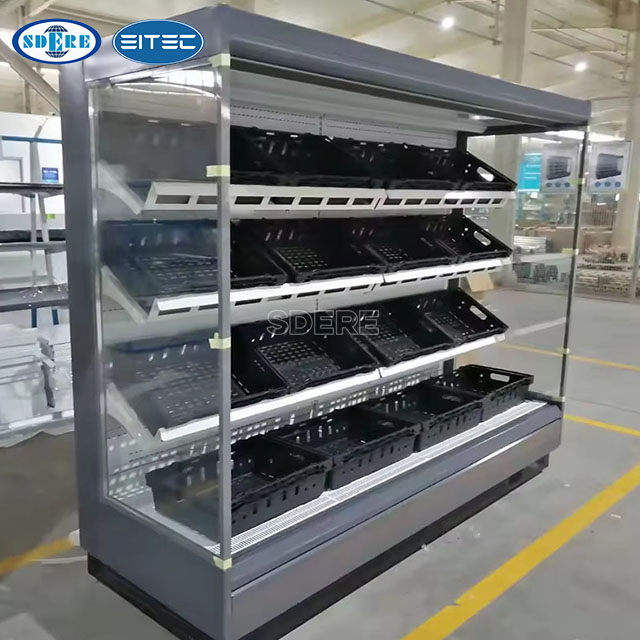

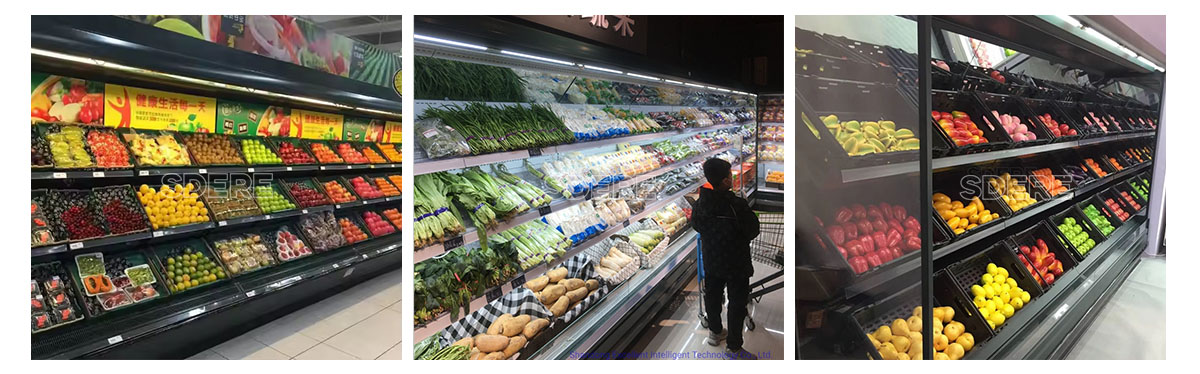

Case Presentation:

Features:

• Large front opening space, better display effect and accessibility.

• Inclining shelves come with baskets, optimized replenishment speed andholding volume for fruits and vegetables.

• Top tubing, Pre-installed solenoid valve and filter leading to easy installation.

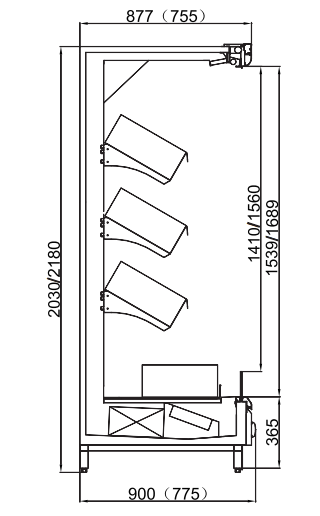

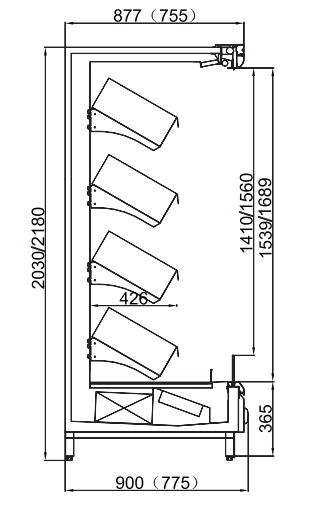

Technical Data:

	Model	Dimension(mm)	Display area(㎡)	Volume(L)
	DVM122003	1250*900*2030	2.13	881
	DVM182003	1875*900*2030	3.19	1321
	DVM252003	2500*900*2030	4.25	1762
	DVM372003	3750*900*2030	6.37	2643
	DVM122203	1250*900*2180	2.31	993
	DVM182203	1875*900*2180	3.47	1490
	DVM252203	2500*900*2180	4.62	1986
	DVM372203	3750*900*2180	6.93	2980

	Model	Dimension(mm)	Display area(㎡)	Volume(L)
	DVM122003	1250*775*2030	1.41	881
	DVM182003	1875*775*2030	2.12	1321
	DVM252003	2500*775*2030	2.83	1762
	DVM372003	3750*775*2030	4.24	2643
	DVM122203	1250*775*2180	1.55	993
	DVM182203	1875*775*2180	2.37	1490
	DVM252203	2500*775*2180	3.1	1986
	DVM372203	3750*775*2180	4.65	2980
