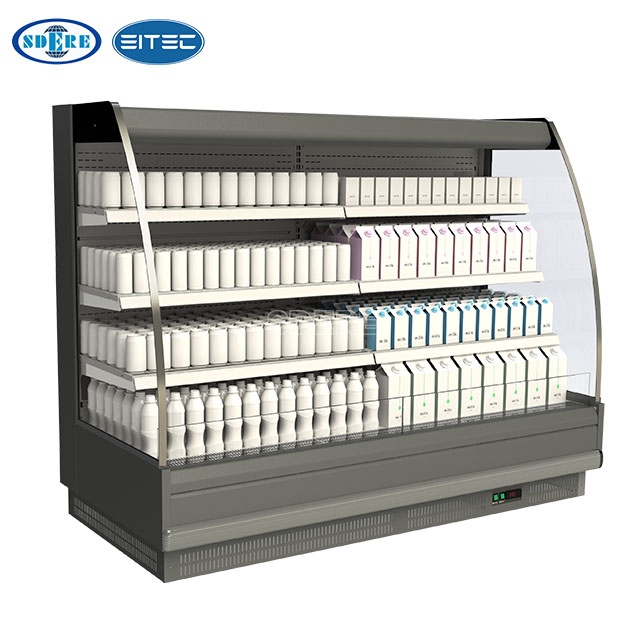

DHM/DHL

REMOTE TYPEDHM/DHL

3M2(-1~+7℃)3H1(+1~+10℃)3M1(-1~+5 ℃)

Features:

• Large front opening space, better display effect and accessibility.

• Optional 1.3/1.5m heights, suitable to place in the middle of the marketwithout blocking any view.

• Sliding door optional for less energy consumption.

• Bottom tubing, Pre-installed solenoid valve and filter leading to easy instal.




Technical Data:

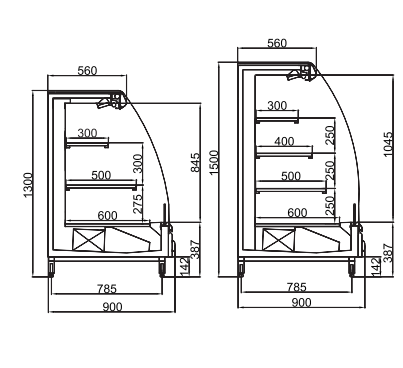

	Model	Dimension(mm)	Display area(㎡)	Volume(L)
	DHM121303	1250*900*1300	1.37	467
	DHM181303	1875*900*1300	2.08	700
	DHM251303	2500*900*1300	2.73	933
	DHM371303	3750*900*1300	4.09	1400
	DHM121503	1250*900*1500	1.61	542
	DHM181503	1875*900*1500	2.42	813
	DHM251503	2500*900*1500	3.23	1084
	DHM371503	3750*900*1500	4.84	1626

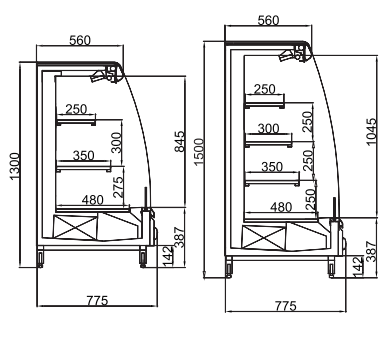

	Model	Dimension(mm)	Display area(㎡)	Volume(L)
	DHM121303	1250*775*1300	1.37	323
	DHM181303	1875*775*1300	2.08	485
	DHM251303	2500*775*1300	2.73	646
	DHM371303	3750*775*1300	4.09	969
	DHLEC1303	2073*985*1300	2.59	540
	DHL121503	1250*775*1500	1.61	409
	DHM181503	1875*775*1500	2.42	613
	DHL251503	2500*775*1500	3.23	818
	DHL371503	3750*775*1500	4.84	1227
	DHLEC1503	2073*985*1500	3.07	616
