REMOTE TYPE--DSA
PLUG IN TYPE--DSI
3M1(-1~+5 ℃)
Features:
Up-lifting arc front glass for better display and easy loading/cleaning.
Optional food-grade S/S 304 interior surfaces and parts, or furtherfull-body S/S 304 to meet higher standards.
Anti-fog fans beneath the front glass, blow air to remove condensingmoisture and enhance the display effect.

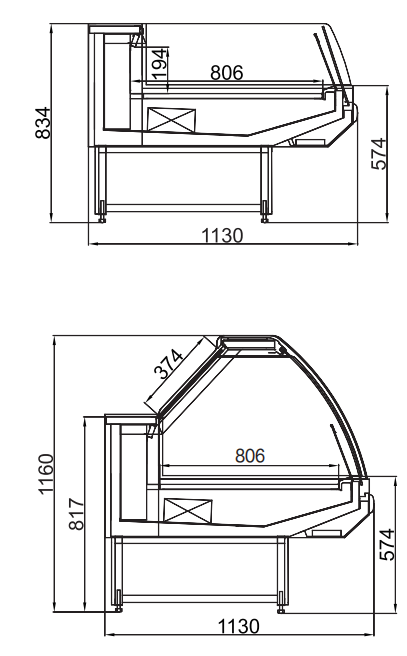

Technical Data:
 | Model | Dimension(mm) | Display area(㎡) | Volume(L) |
DSA(DSI)12CCL3 | 1250*1130*834 | 1.14 | 182 | |
DSA(DSI)18CCL3 | 1875*1130*834 | 1.71 | 273 | |
DSA(DSI)25CCL3 | 2500*1130*834 | 2.29 | 363 | |
DSA(DSI)31CCL3 | 3125*1130*834 | 2.86 | 455 | |
DSA(DSI)37CCL3 | 3750*1130*834 | 3.34 | 546 | |
DSA(DSI)12CCH3 | 1250*1130*1160 | 0.71 | 182 | |
DSA(DSI)18CCH3 | 1875*1130*1160 | 1.06 | 273 | |
DSA(DSI)25CCH3 | 2500*1130*1160 | 1.42 | 363 | |
DSA(DSI)31CCH3 | 3125*1130*1160 | 1.77 | 455 | |
| DSA(DSI)37CCH3 | 3750*1130*1160 | 2.12 | 546 |
