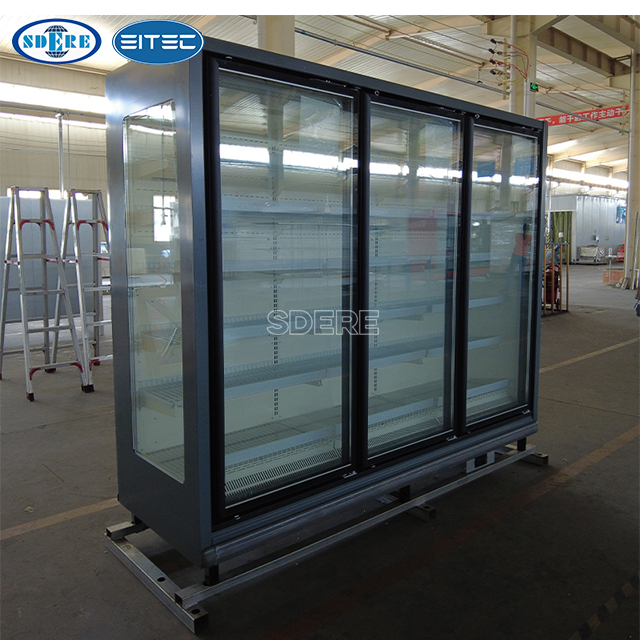

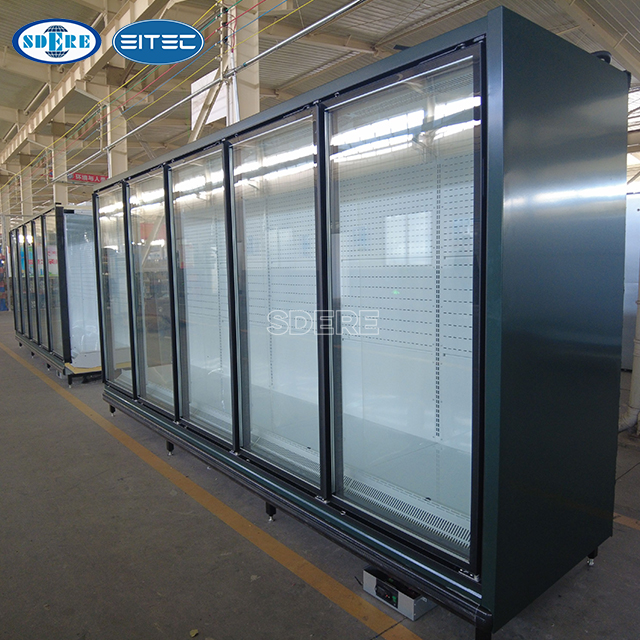

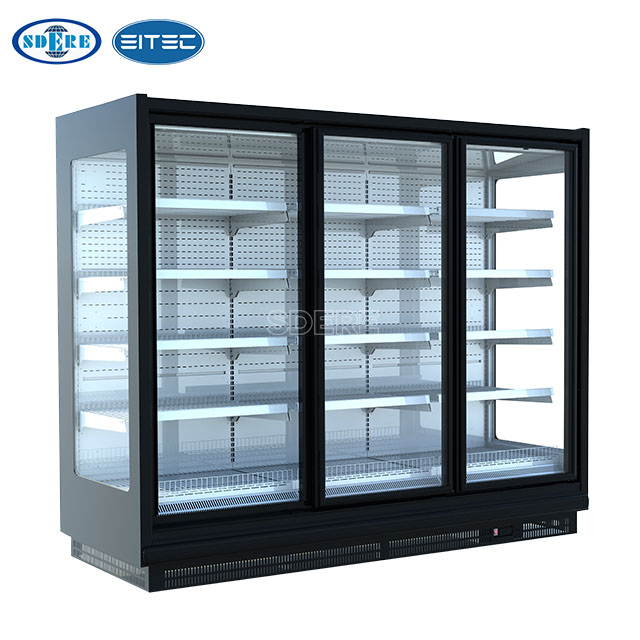

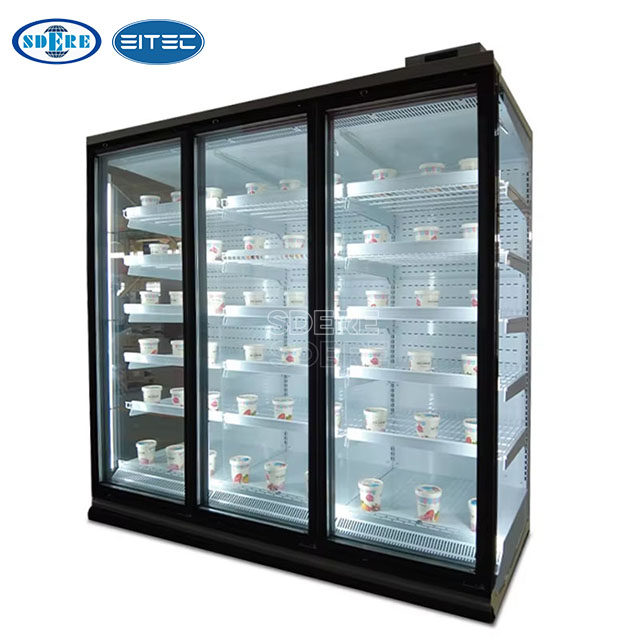

DDW/DDN-Split Frozen Glass Door Cabinet

Remote Glass Door Freezer--DDW/DDN

3L1(-20~-24℃)3L2(-16~-20℃)

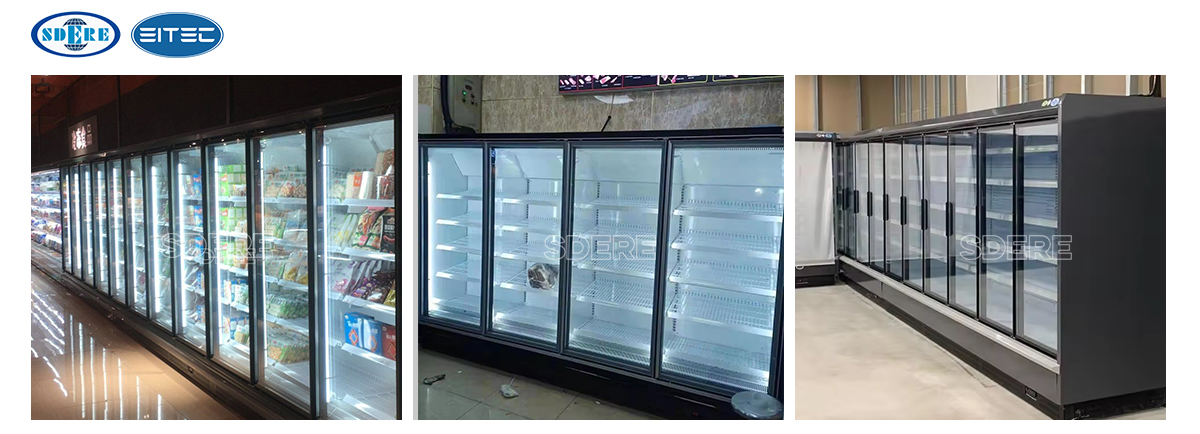

Case Presentation:

Features:

• Triple-layer glass doors, robust structure, good display effect and betterenergy efficiency.

• Equiped with grill shelves and TPU dividers behind door frames to optimizeinterior cold air flow and avoid potential door-opening cold leakage.

• Top tubing, Pre-installed solenoid valve and filter to reduce installationdifficulty.

• Build-in electrical defrost heater, better defrosting performance and energyefficiency.

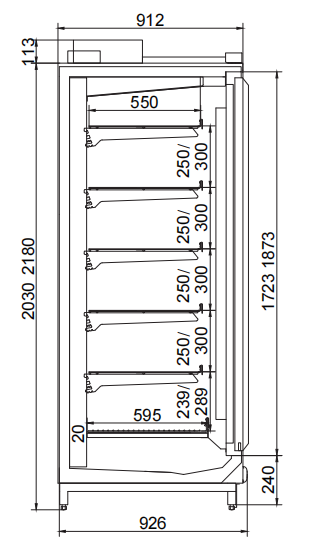

Technical Data:

	Model	Dimension(mm)	Display area(㎡)	Volume(L)
	DDW1520F3	1560*926*2030	1.67	1325
	DDW2320F3	2340*926*2030	2.15	1987
	DDW3120F3	3120*926*2030	3.35	2650
	DDW3920F3	3900*926*2030	4.19	3312
	DDW1522F3	1560*926*2180	1.83	1456
	DDW2322F3	2340*926*2180	2.75	2184
	DDW3122F3	3120*926*2180	3.67	2912
	DDW3922F3	3900*926*2180	4.58	3640

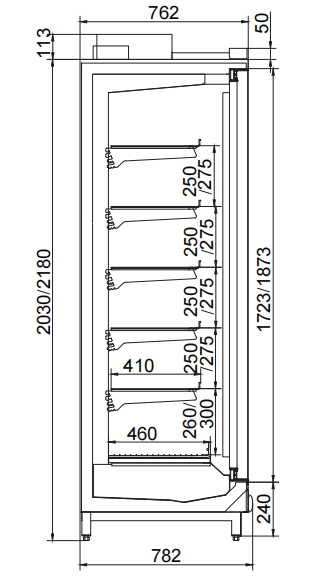

	Model	Dimension(mm)	Display area(㎡)	Volume(L)
	DDW1520F3	1560*782*2030	1.67	946
	DDW2320F3	2340*782*2030	2.15	1419
	DDW3120F3	3120*782*2030	3.35	1893
	DDW3920F3	3900*782*2030	4.19	2366
	DDW1522F3	1560*782*2180	1.83	1049
	DDW2322F3	2340*782*2180	2.75	1573
	DDW3122F3	3120*782*2180	3.67	2098
	DDW3922F3	3900*782*2180	4.58	2622

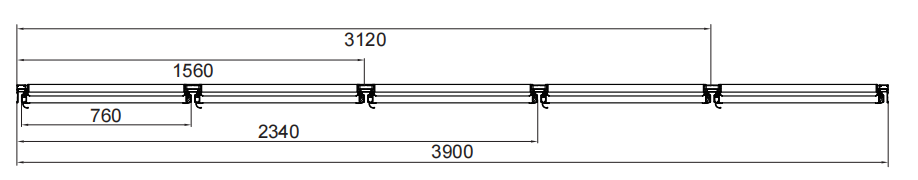

Doors layout：
